With 600W RMS of output power into 4-ohms (1200W RMS into 2-ohms), the Brama Monoblock Power Amplifier’s high-current, Class AB lateral MOSFET output stage drives even the most demanding loudspeakers with total conviction.

What sets our approach apart is how we achieve this power using only 3 matched output devices per rail, effortlessly revealing the subtlest nuances in your music. The amplifier’s two PCB stacks and advanced layout and grounding techniques keep the signal and power paths short, ensuring optimal performance.

Additionally, heatsink temperature and speaker output current are continuously monitored and protected, ensuring long-term reliability and listening enjoyment.

An analog masterpiece.

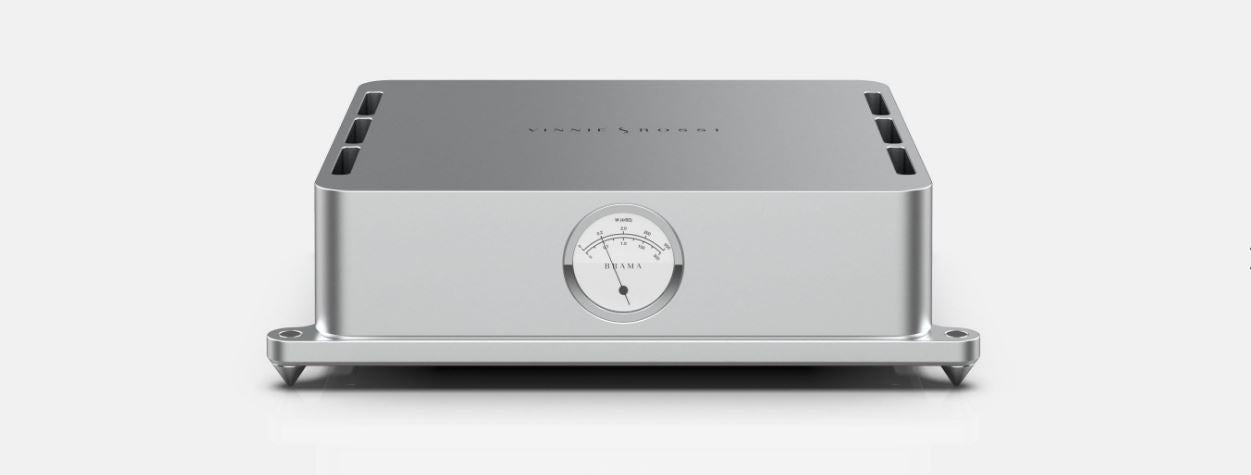

The front panel of the Brama Monoblock Power Amplifier reveals a clean layout, luxurious feel, and timeless design that intentionally excludes digital displays and numerous buttons.

A bespoke, analog output power gauge features a precision air core movement, responsive driver circuitry, and machined aluminum hand. Sapphire glass and a highly polished stainless bezel seamlessly integrates the gauge to the front panel.

Like a well-tuned engine.

The Brama Monoblock Power Amplifier features a custom switch-mode power supply designed to outperform conventional linear supplies. With 2400W peak output power and patented Belleson super-regulated outputs, it delivers a high current with exceptionally low output noise and impedance. Its high-speed operation and low magnetic losses ensure ultra-fast transient response and superior pace, rhythm, and timing in music reproduction.

With active power factor correction (PFC) and superior regulation and stability, the power supply ensures maximum performance regardless of AC mains quality. Housed in a fully enclosed compartment precision machined into Brama’s solid aluminum body, it is fully grounded and isolated from the audio circuitry, performing like a highly-responsive, well-tuned engine.

The fusion of form and function.

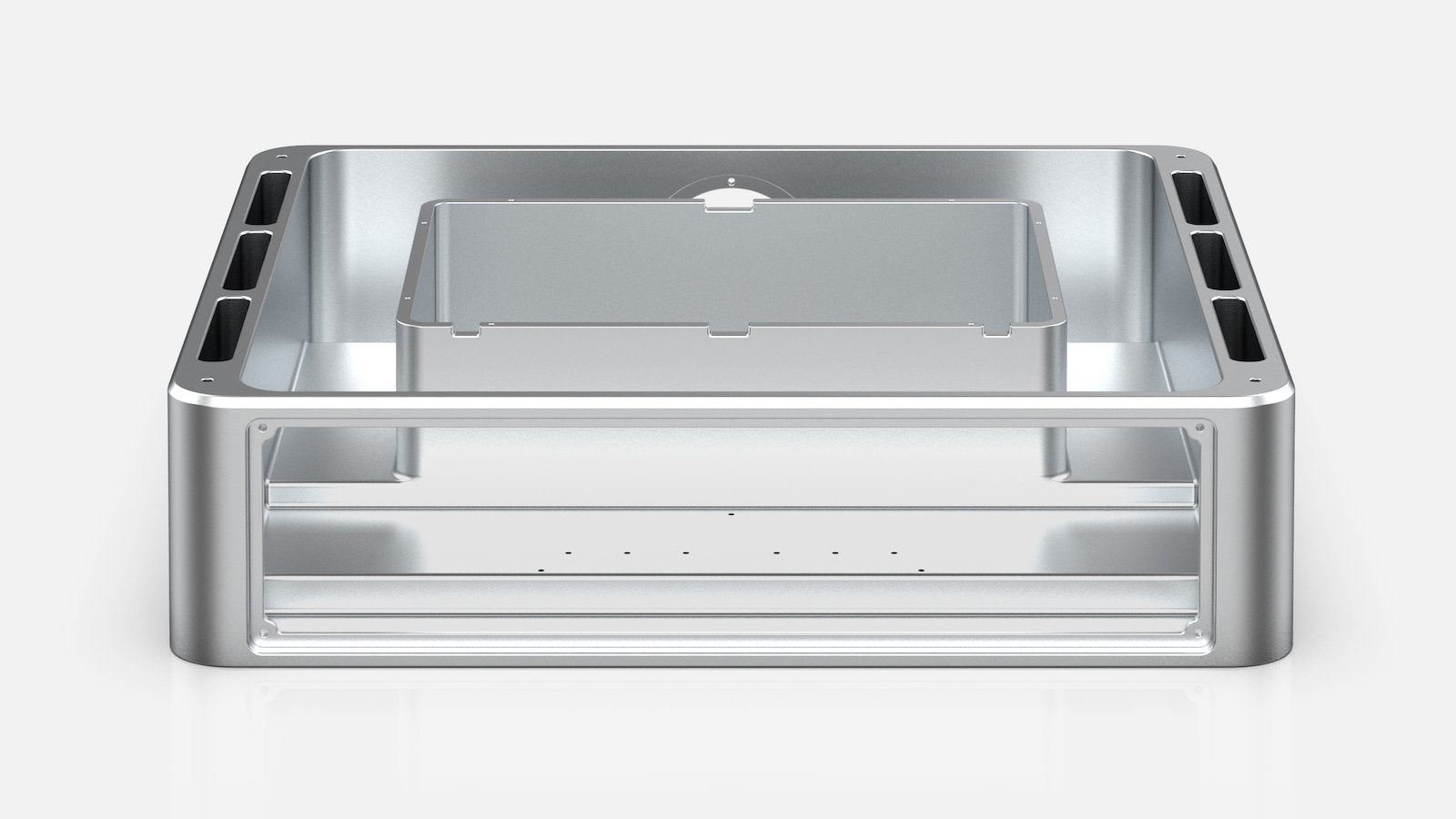

Uncommon even among cost-no-object components, the main body of the Brama Monoblock Power Amplifier is precision-machined from a solid block of aluminum. This construction offers exceptional resonance control, complete shielding against electromagnetic interference (EMI), and ensures superior heat dissipation, thereby guaranteeing the long-term reliability of its internal components.

From an industrial design perspective, the seamless construction enhances the amplifier’s aesthetic appeal for audiophiles who value sophistication and elegance.

Additional Features

Front Panel

• Wattage Gauge: Displays RMS watts into 8/4 ohms


• Wattage Gauge Glass: Made of sapphire crystal

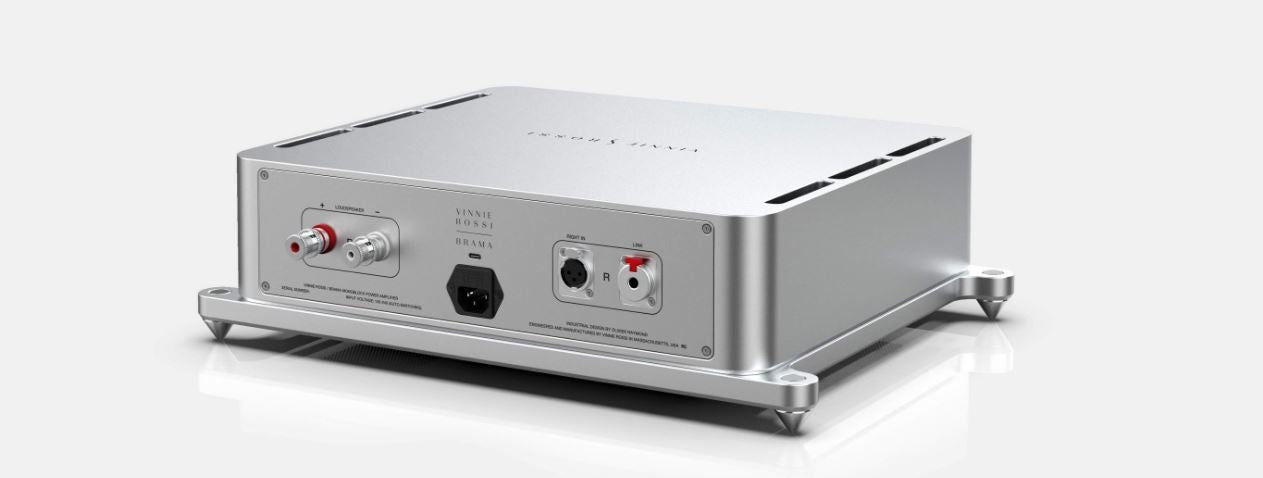

Rear Panel

• Line-Level Input: Balanced XLR


• Brama Link: 1 for interfacing with Brama Preamplifier or for 12V trigger input


• Speaker Outputs: WBT Nextgen 0710-Ag binding posts


• AC Input Jack: IEC 320-C14 with fuse holder

Protection

• Over-Current Protection


• Over-Temperature Protection

Travel Case The Brama Monoblock Power Amplifier ships in an air-tight hard case with a custom foam interior, 4-latches, a rubberized handle, and an automatic air-pressure release valve.

Specifications

• AC Mains Input: 100-264Vac (50-60Hz)


• Output Power:
  – 300W RMS into 8 ohms
  – 600W RMS into 4 ohms
  – 1200W RMS into 2 ohms


• THD+N: Less than 0.1% (20Hz – 20kHz)


• Frequency Response: 5Hz – 100kHz (+/- 0.5 dB)


• Signal-to-Noise Ratio: Greater than 100dB (20Hz – 20kHz)


• Input Impedance: 20k ohm


• Gain: 22dB


• Output Impedance: Less than 0.01 ohms


• IEC Jack Fuse: 16A 250V (5x20mm), Fast Blow, Ceramic Type


• Power Consumption (Idle): 50W


• Product Weight: 45 lbs. (20.4 kg) per monoblock


• Product Dimensions (including binding posts and feet): 18.7″ x 15.25″ x 5.5″ (475mm x 387mm x 140mm)


• Shipping Weight: 68 lbs. (30.8 kg) per monoblock


• Shipping Carton Dimensions: 25″ x 21″ x 11″ (635mm x 533mm x 279mm)

(Vinnie Rossi reserves the right to change product features and/or specifications without notice to improve reliability, function, design, or otherwise)
